Automatic Knife Grinding Machine

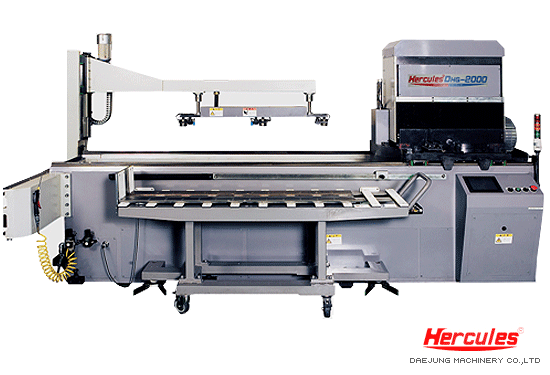

Product Image
Automatic Knife Grinding Machine
Automatic Knife Grinding Machine

Product Explanation
Specification DHG-2000
 4-Head unit HSS & TCT
Min. grinding length 300mm
Max. grinding length 1,940mm
Machine length 1,695mm
Machine height 1,810mm
Table angle regulation range 0 ~ 90˚
Max. automatic operating 10ea
Max. cutting depth HSS(0.015mm), TCT(0.01mm)
Max. cycle time HSS(15 Min), TCT(25 Min)
Max. cutting speed 14.6M/Min(243mm/Sec)
Net weight 2,500kg
Separator Separately collect ( HSS & TCT )
Main motor 10kw 2P 2400RPM
Total power required 13kw
Air consumption 6Kg/cm2G, 20NL
